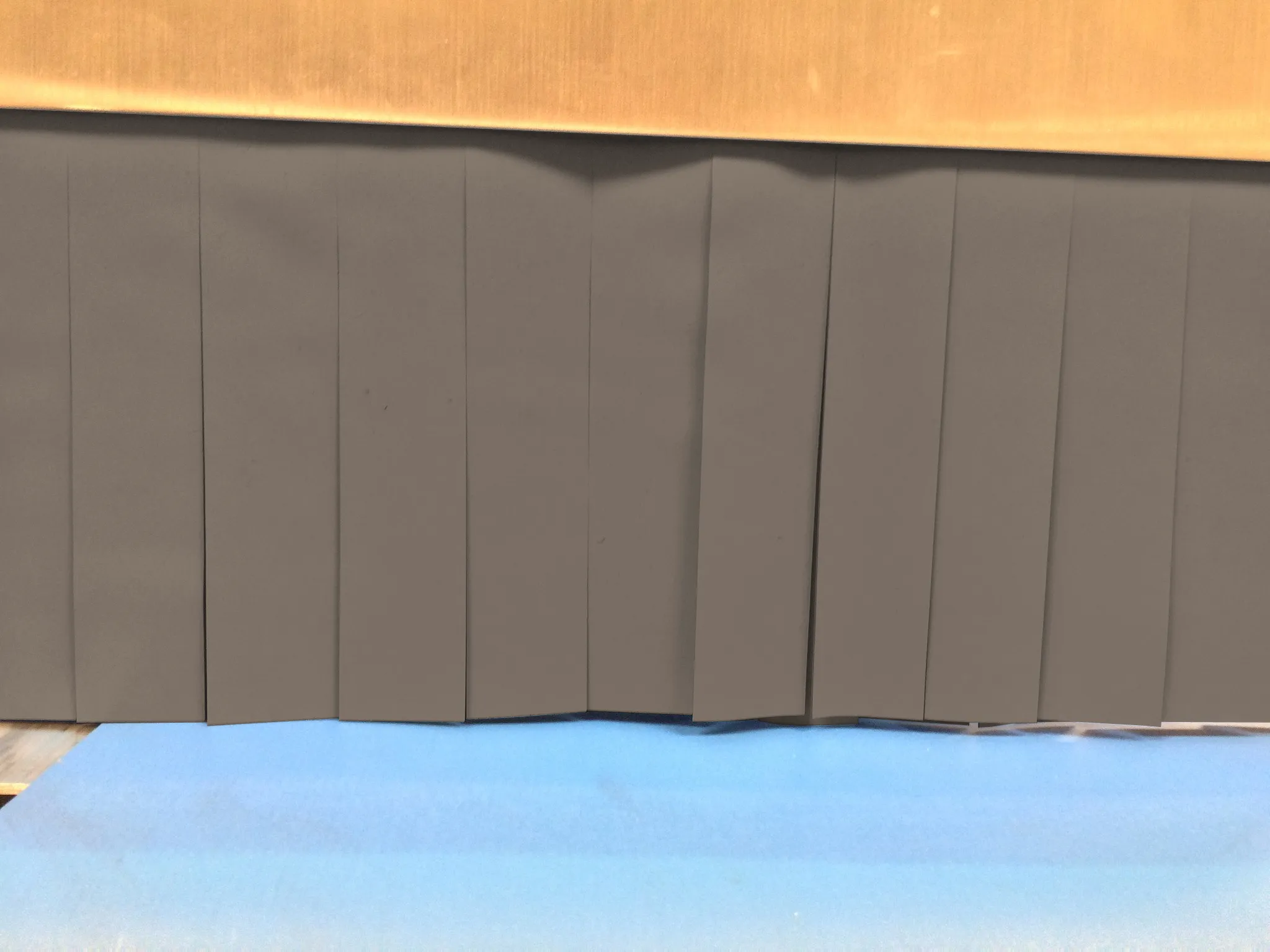

Ultralight Xray Curtains provide a lead free shielding equivalent of 0.125 mm Pb. The radiation protection has been obtained through replacing lead with suitable non-lead metals. These lead free materials allow for x-ray curtains with lower weight than traditional lead rubber. The result is an extremely light weight rubber xray curtain.

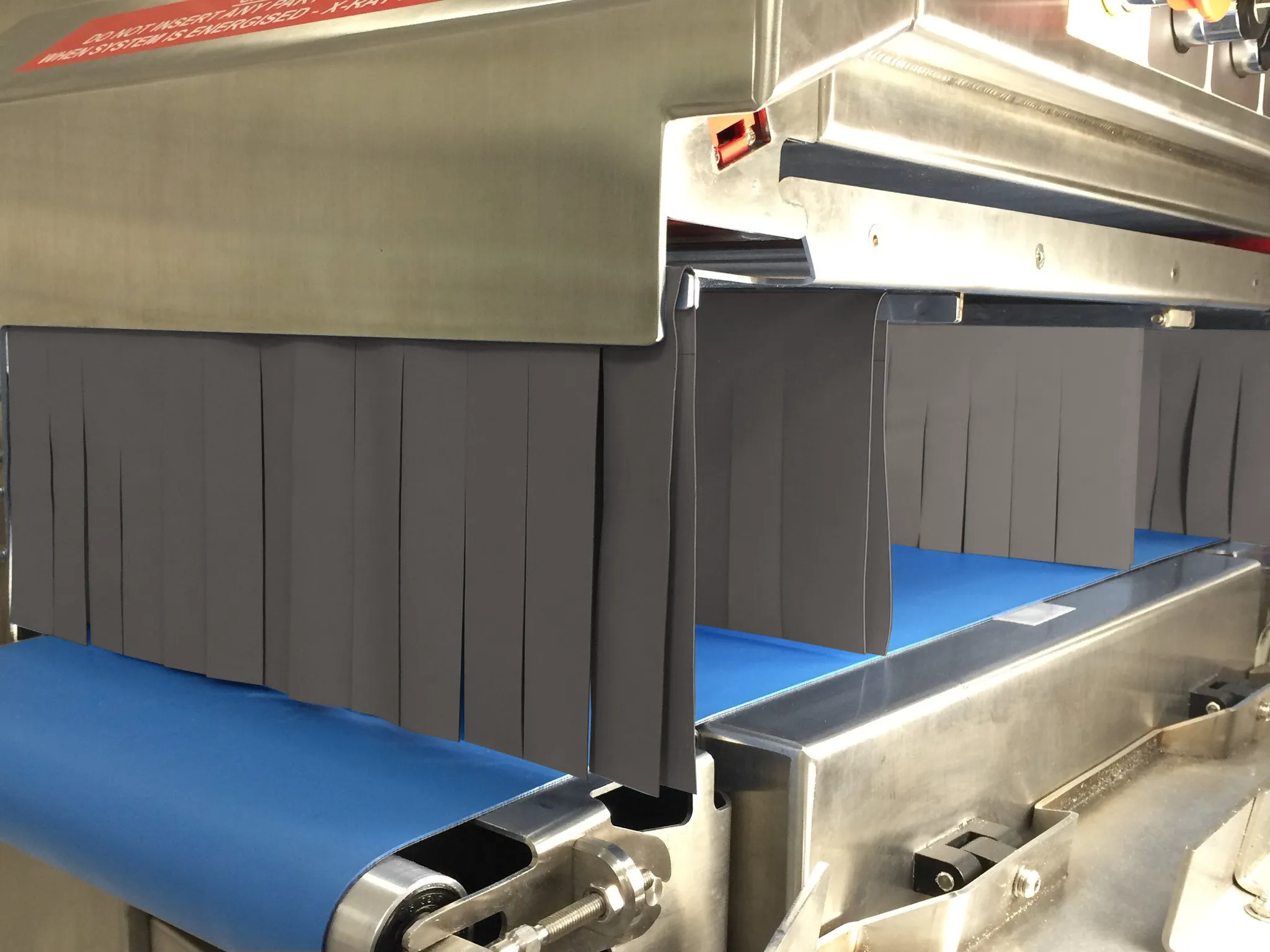

A USP Class VI film is applied suitable for wiping with 70% IPA. This lead free material is perfect for xray systems inspecting lightweight pouches or cartons in life sciences, pharma or biologics applications. The Ultralight lead free product is a unique xray curtain, and you will not find another xray curtain like this on the market!

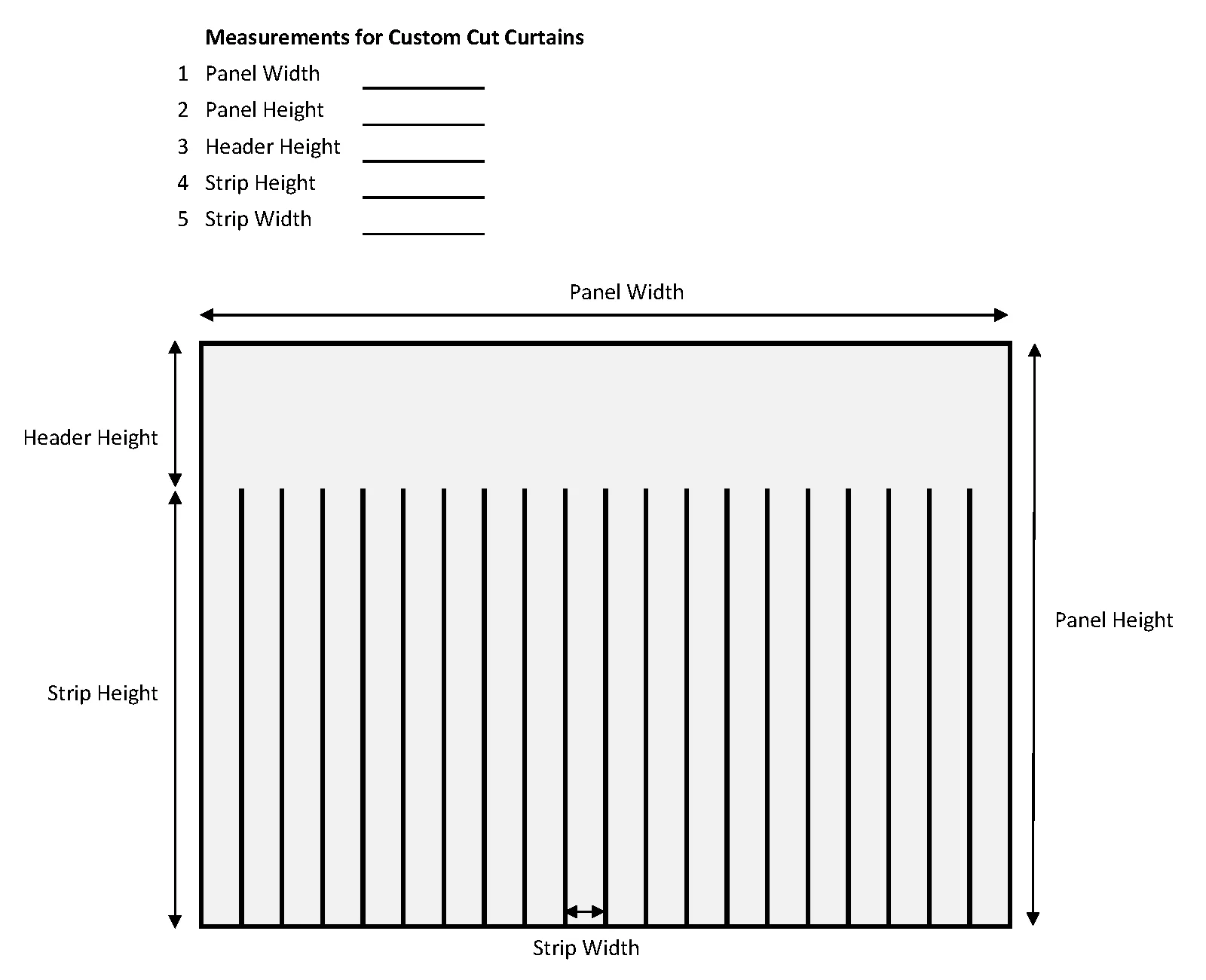

Custom size lead free ultralight panels are available precut with strips.
Please contact us for details on custom curtain sets or large quantity orders by calling or by email at
Product Details
- USP Class VI Compliant Film on Both Sides
- Lightweight Lead Free Rubber Core Composite Shielding
- ROHS & REACH Compliant
Physical Properties
| Composition | Rubber Matrix |
| Color | Brown |
| Lead equivalence ( /- 10%)* | 0.125 mm |
| Thickness ( /- 10%) | 0.45 mm |
| Weight | 1.6 kg/m2 |
| Hardness | 60 /- 5 Shore A |
| Tensile strength (min.) | 4 MPa |
| Elongation at Break | 1.25 |
*Certified according to DIN 61331-1 (50 kV - 110 kV)
